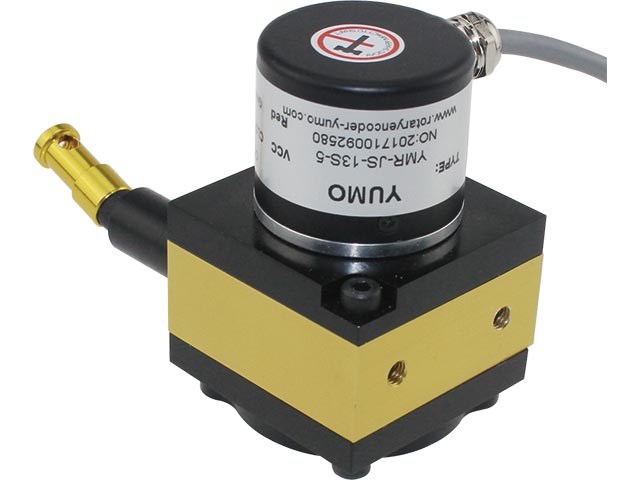

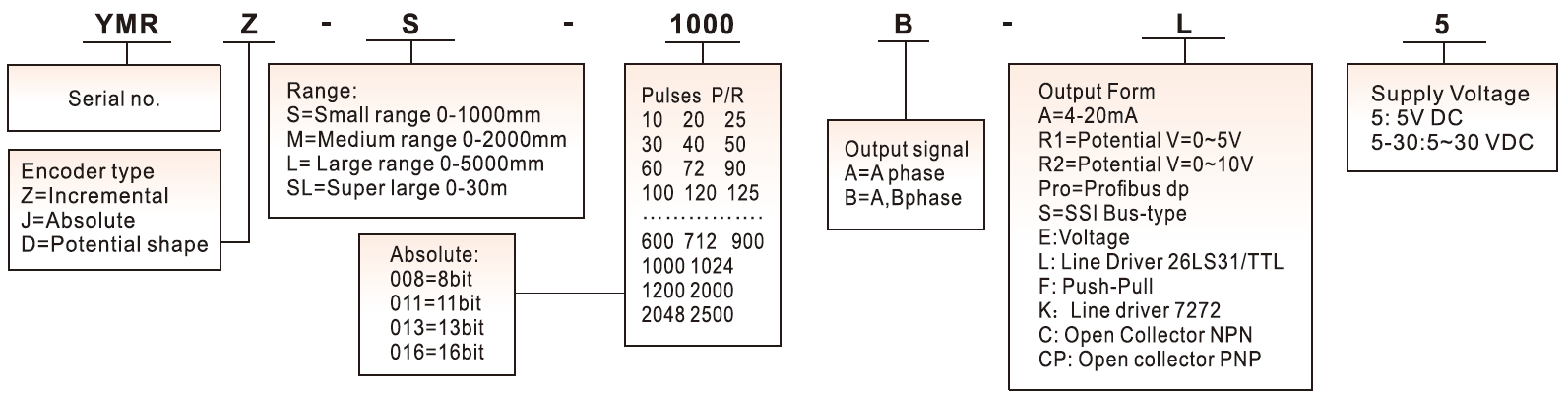

Application Automatic control , measurement, robotics, X-Y working platform, ,printing machine and etc. Features High reliability, long life, strong anti-interference ability Outlet side of metal plug has waterproof protection. Ordering Information
|
Note
1, Please contact sales representative to confirm the correctness and availability of the part number
Technical Specifications
Electrical Specification |
||||
Output circuit |
Open collector |
Voltage output |
Push pull output |
Line driver output |
Power Vcc |
5~30 |
5~30 |
5±0.25 5~30 |
5±0.25 5~30 |
Current |
≤80mA |
≤80mA |
≤80mA |
≤150mA |
Load current |
40mA |
40mA |
40mA |
60mA |
High-level output |
Min Vcc*70% |
Min Vcc-2.5V |
Min Vcc-1.5V |
Min 3.4V |
Low-level output |
Max 0.4V |
Max 0.4V |
Max 0.8V |
Max 0.4V |
Rise Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
Fall Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
Max Responding Frequency |
300kHz |
300kHz |
300kHz |
300kHz |
Mechanical Specification |
||||
Max speed(r/min) |
Starting Torque |
Max. Shaft Loading |
Shocking |
Vibration |
6000 |
<0.05Nm |
Radial:50N, Axial:10N |
50G/11ms |
10G 10-2000Hz |
Rotor Inertia |
Working Temperature |
Storage Temperature |
Protection Grade |
Weight |
4*10-8Kgm2 |
-30~85℃ |
-35~95℃ |
IP51 |
100g |
Connection Table
Signal |
A |
B |
Z |
Ā |
B(-) |
Z(-) |
Vcc |
GND |
Color |
Green |
White |
Yellow |
Brown |
Grey |
Orange |
Red |
Black |

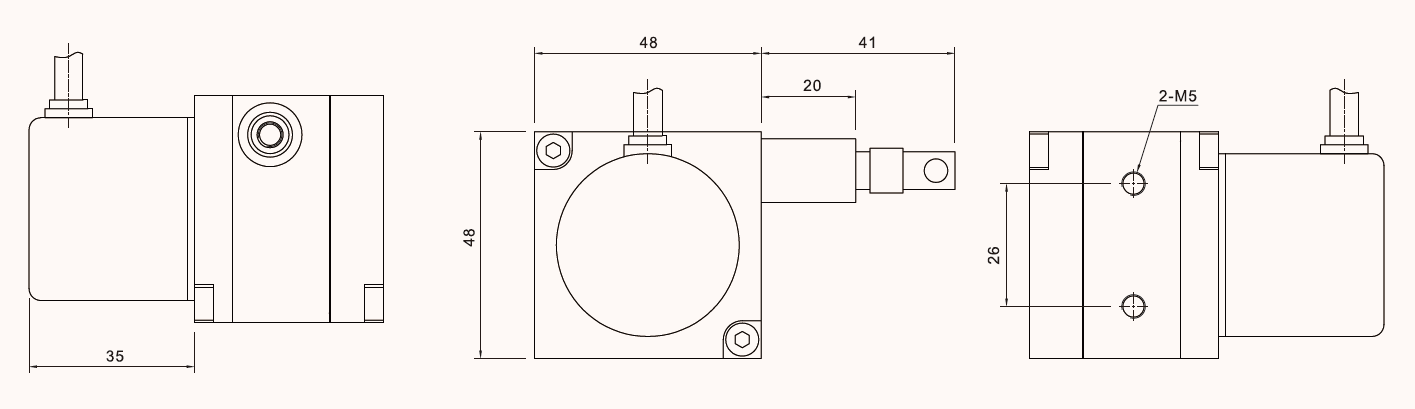

Dimensions(mm)
