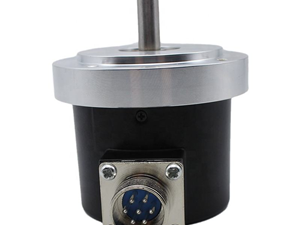

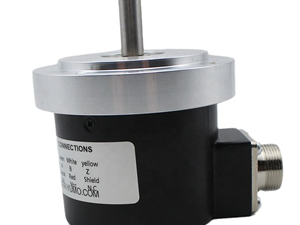

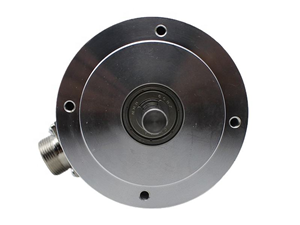

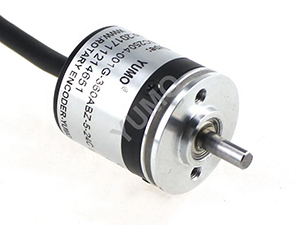

Solid Shaft Incremental Rotary encoder 70mm shaft 8mm 1000PPR Rotary angle encoder high quality

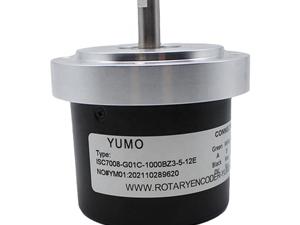

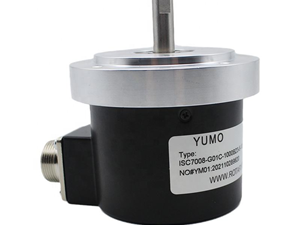

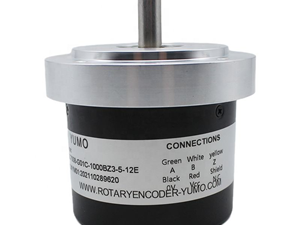

Model: ISC7008-G01C-1000BZ3-5-12E

ISC3806 Optical Encoder

Product Description

Shaft diameter 6 mm ¦ or 8 mm ¦, clamping flange, housing diameter 38 mm ¦.
Low price at high performance, small volume, light weight, easy for installing


Optical encoder Applications.
Measure the distance, stop dog positioning,
Curtained door, textile machinery

1. ELECTRICAL SPECIFICATIONS
A). Output wave: Square wave
B). Output signals: A, B, Z, (Line driver output A, A, B, B, Z, Z phase)
C). Current consumption: d120mA
D). Response Frequency: 0~100KHz
E). Output phase difference: 90*
F. ) Supply voltage: 5V DC, 5-12V DC, 12-24V DC
G). Signal leve: LVHe85%Vcc, VLd0.3V
H). Number of pulses: 10, 15, 20, 30, 40, 50, 60, 100, 120, 125, 150, 180, 200, 240, 250, 256, 300, 360, 400, 480, 500, 512, 600, 720, 740, 800, 900, 960, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500(Other number of pulse available on request)
I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage

2. MECHANICAL SPECIFICATIONS
A). Speed without sealing: 5000rmp
B). Rotor moment of inertia: Appraisal 4.5x10-6Kgm2
C). Starting torque without sealing: d1.5x 10-3Nm (+25*C)
D). Maximum load permitted on shaft: Radial: 20N; Axial: 10N
E). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ
F). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ
G). Working life: MTBFe25000h (+25*C, 2000rpm)
H). Weight: Appraisal: 130g (with 1 meter cable)

3. ENVIRONMENTAL SPECIFICATIONS
A). Working humidity: 30~85% (No condensation)
B). Storage temperature: -40*C~100*C
C). Working temperature: -25*C~85*C
D). Protection class: IP54
