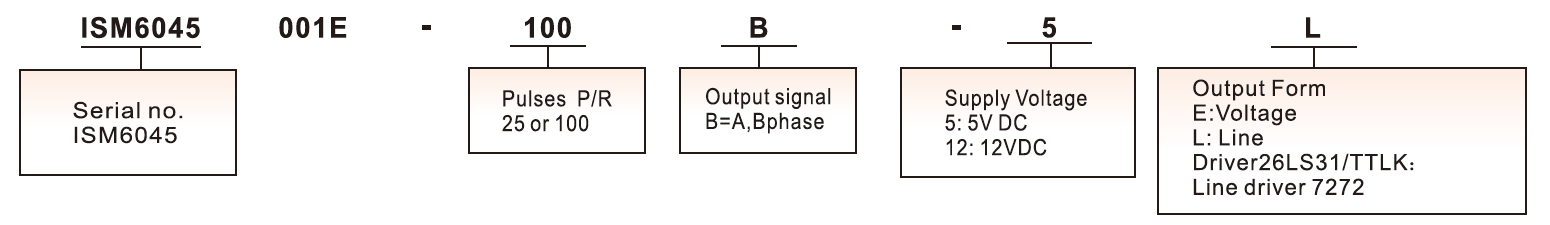

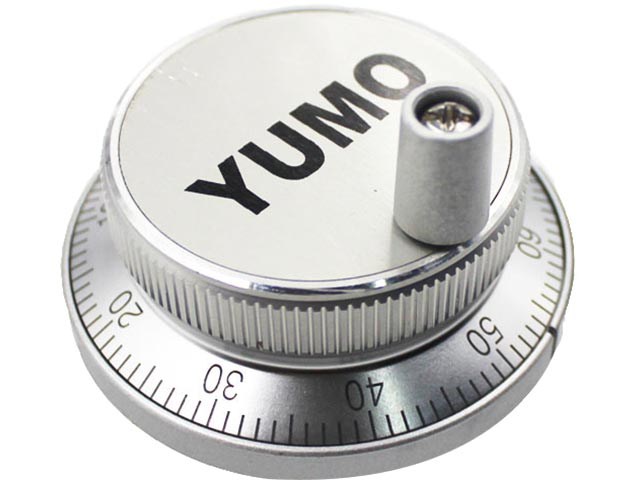

Application Industrial tolling machinery , zero correction of printing machinery or signal cutting , numerical control machine and etc Features Suitable for manual pulses input type such as CNC or milling machine High reliability , terminal connection type Ordering Information
Note 1, Please contact sales representative to confirm the correctness and availability of the part number |
2, Line Drive is only available with 5VDC,12VDC option
Technical Specifications
|
Electrical Specification |
||||
|
Output circuit |
Open collector |
Voltage output |
Push pull output |
Line driver output |
|
Power Vcc |
5~30 |
5~30 |
5±0.25 5~30 |
5±0.2512V |
|
Current |
≤80mA |
≤80mA |
≤80mA |
≤150mA |
|
Load current |
40mA |
40mA |
40mA |
60mA |
|
High-level output |
Min Vcc*70% |
Min Vcc-2.5V |
Min Vcc-1.5V |
Min 3.4V |
|
Low-level output |
Max 0.4V |
Max 0.4V |
Max 0.8V |
Max 0.4V |
|
Rise Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Fall Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Max Responding Frequency |
10kHz |
10kHz |
10kHz |
10kHz |
|
Mechanical Specification |
||||
|
Max speed(r/min) |
Working Temperature |
Storage Temperature |
Protection Grade |
Weight |
|
600 |
-25~70℃ |
-30~85℃ |
IP50 |
250g |

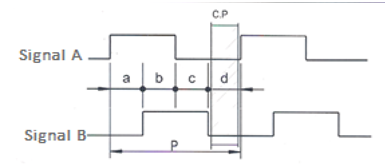

Output Phase Shift
 |
P pulses Periodic
a,b,c,d=0.25±0.125P
C,P location of sounding point |
|
Connection Table
|
Code |
1 |
2 |
3 |
4 |
5 |
6 |
|
Line drive output |
+5V |
0V |
Sigal A |
SigalA(-) |
Signal B |
SignalB(-) |
|
Other output |
+5V |
0V |
Sigal A |
Signal B |
- |
- |

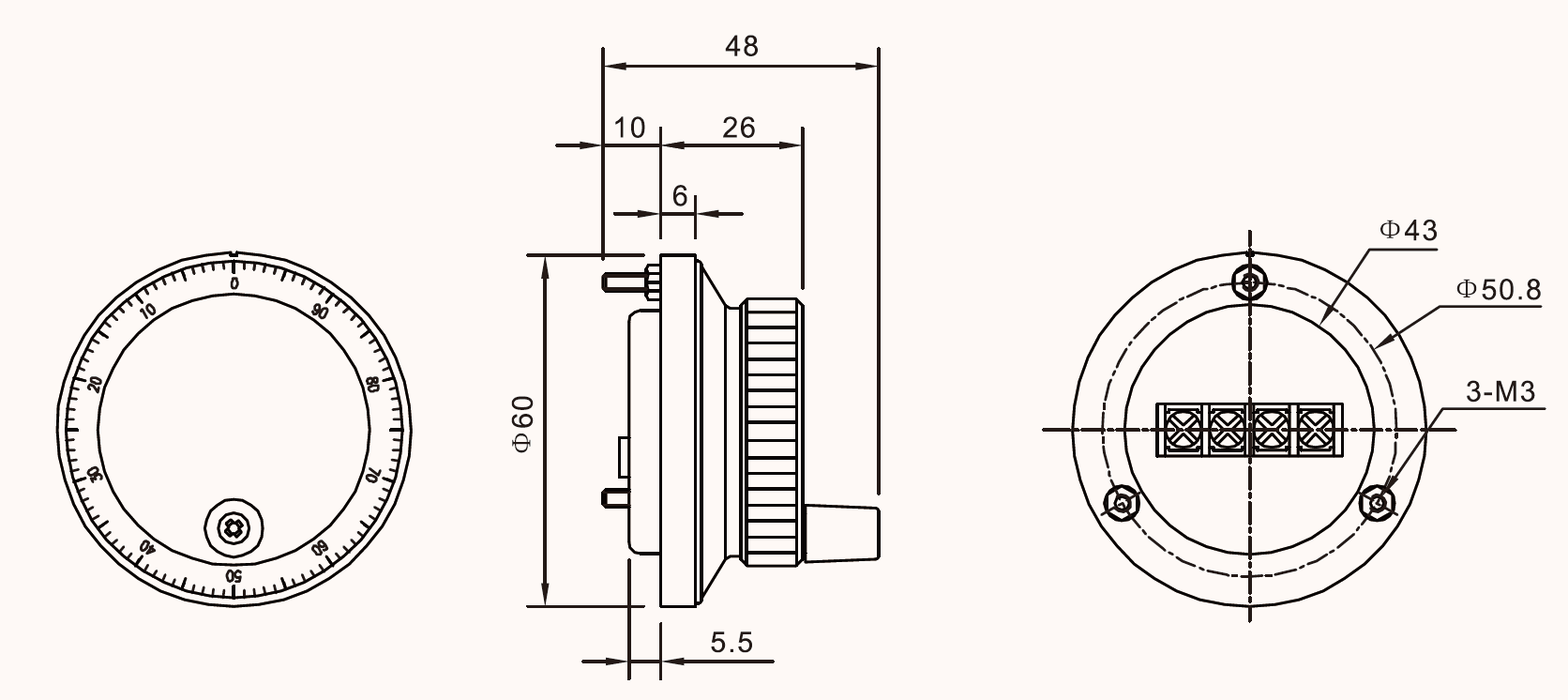

Dimensions(mm)
