ISC2504 SERIES SOLID-SHAFT INCREMENTAL ROTARY ENCODER

Date: 2024.01.04   Views: 169

YUMO ISC2504 SERIES SOLID-SHAFT INCREMENTAL ROTARY ENCODER

Application

Measure the distance, automatic control ,robot, X-Y labor ,printing, curtained door, shoe machine , textile machine and etc.


Features
Miniature size, easy assembling
2 quadrature output channel (A&B) + index signal

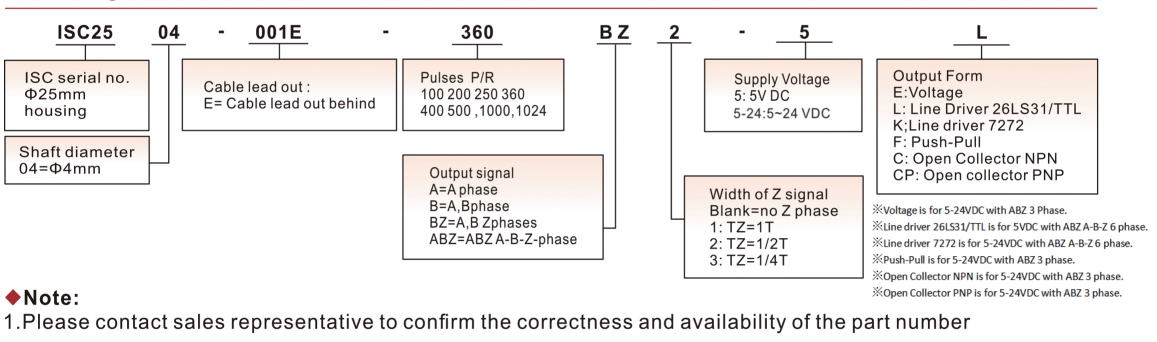

Ordering Information

Technical Specifications

Electrical  Specification

Output circuit

Open collector

Voltage output

Push pull output

Line driver output

Power Vcc

5~30

5~30

5±0.25   5~30

5±0.25 5~30

Current

80mA

80mA

80mA

150mA

Load current

40mA

40mA

40mA

60mA

High-level output

Min Vcc*70%

Min Vcc-2.5V

Min Vcc-1.5V

Min 3.4V

Low-level output

Max 0.4V

Max 0.4V

Max 0.8V

Max 0.4V

Rise Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Fall  Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Max Responding Frequency

150kHz

150kHz

150kHz

150kHz

Mechanical Specification

Max speed(r/min)

Starting Torque

Max. Shaft Loading

Shocking

Vibration

5000

<0.03Nm

Radial:15N, Axial:10N

50G/11ms

10G 10-2000Hz

Rotor  Inertia

Working Temperature

Storage Temperature

Protection Grade

Weight

4*10-8Kgm2

-25~80

-30~85

IP51

60g

Output Phase Shift


Wave Ratio: a+b=0.5T±0.1T

c+d=0.5T±0.1T

Z signal Width: Tz=1T±0.5T

Signal position accuracy :

A,B phase absolute angle deviation 0.2T


Periodic Deviation 0.05T

T=360°/N (N is output pulse number of each spin )

Connection Table

Signal

A

B

Z

Ā

B(-)

Z(-)

Vcc

GND

Color

Green

White

Yellow

Brown

Grey

Orange

Red

Black

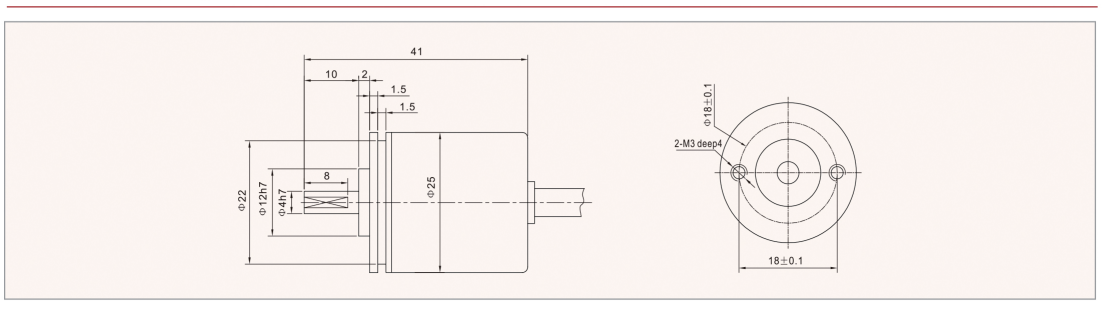

Dimensions(mm)
