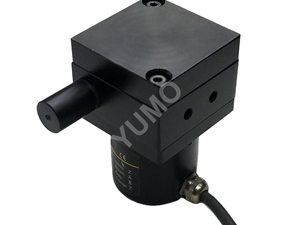

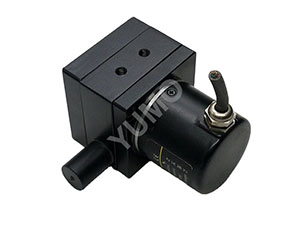

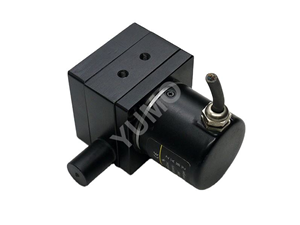

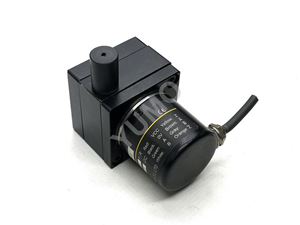

Linera wire encoder Applications
Used in automatic control.measurement.robotics.x-y working platform.
Printing and packaging.
Linera wire encoder Features
The internal used of ASIC devices.high reliability.long life.strong anti-jamming performance.
Stainless steet shaft possesses higher stability and protective ability.
Metal shell is more strong and can impact resistance.Outlet side of metal plug has waterproof protection
Technical parameters
|
Type |
YMR-Z-S-100-B-L-526 |
Range |
0-1000mm |
|
Current consumption |
below 80mA |
Operating Temperature |
-30°C-85°C |
|
Load current |
40mA |
Axis maxium load |
Radial 50N Radial 10N |
|
Frequency response |
300k Hz |
Operating Humidity |
30-85 % No condensation |
|
Output signal |
AB phase, ABZ in Thephase |
Cable |
1M |
|
Supply voltage |
DC 5-26V |
Anti-shock |
10HZ to2000HZ, 10G |
|
Starting torque |
below 0.05Nm |
Impact resistance |
50G/11ms |
|
Circuit characteristics |
voltage, current, push-pull, long-line drive output, open collector |
speed |
10m/s |
|
Degree of protection |
IP51 |
weight |
500g |
