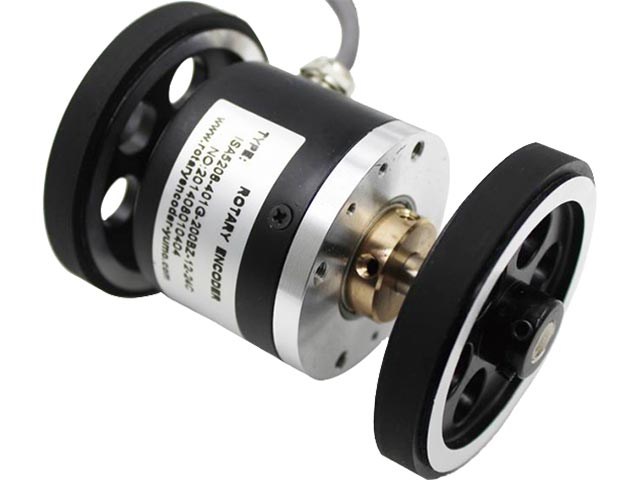

ISA5208 Series Hollow-Shaft Incremental Rotary Encoder

Application
Measure the length or speed of target by wheel type ,automatic control , robot, X-Y labor ,printing, packing machine and etc.


Application

Measure the length or speed of target by wheel type ,automatic control , robot, X-Y labor ,printing, packing machine and etc.

Features

High reliability , long life , strong anti-interference ability

2 quadrature output channel (A&B) + index signal

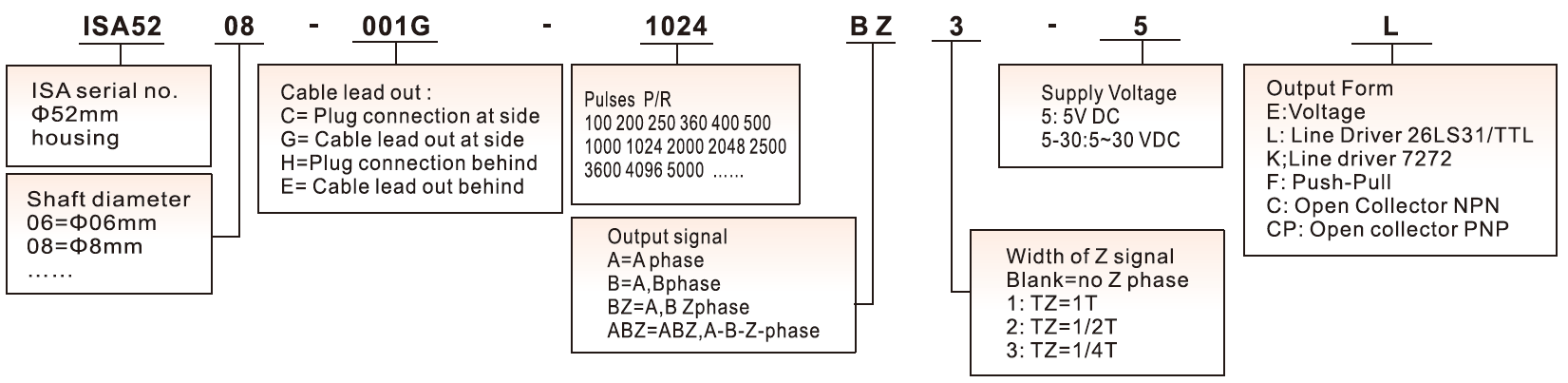

Ordering Information


Note

1, Please contact sales representative to confirm the correctness and availability of the part number

Technical Specifications

Electrical  Specification

Output circuit

Open collector

Voltage output

Push pull output

Line driver output

Power Vcc

5~30

5~30

5±0.25   5~30

5±0.25 5~30

Current

≤80mA

≤80mA

≤80mA

≤150mA

Load current

40mA

40mA

40mA

60mA

High-level output

Min Vcc*70%

Min Vcc-2.5V

Min Vcc-1.5V

Min 3.4V

Low-level output

Max 0.4V

Max 0.4V

Max 0.8V

Max 0.4V

Rise Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Fall  Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Max Responding Frequency

300kHz

300kHz

300kHz

300kHz

Mechanical Specification

Max speed(r/min)

Starting Torque

Max. Shaft Loading

Shocking

Vibration

6000

<0.05Nm

Radial:25N, Axial:15N

50G/11ms

10G 10-2000Hz

Rotor  Inertia

Working Temperature

Storage Temperature

Protection Grade

Weight

4*10-8Kgm2

-30~85℃

-35~95℃

IP51

250g

Output Phase Shift


Wave Ratio: a+b=0.5T±0.1T
c+d=0.5T±0.1T
Z signal Width: Tz=1T±0.5T
Signal position accuracy :

A,B phase absolute angle deviation 0.2T


Periodic Deviation 0.05T

T=360°/N (N is output pulse number of each spin )


Connection Table

Signal

A

B

Z

Ā

B(-)

Z(-)

Vcc

GND

Color

Green

White

Yellow

Brown

Grey

Orange

Red

Black

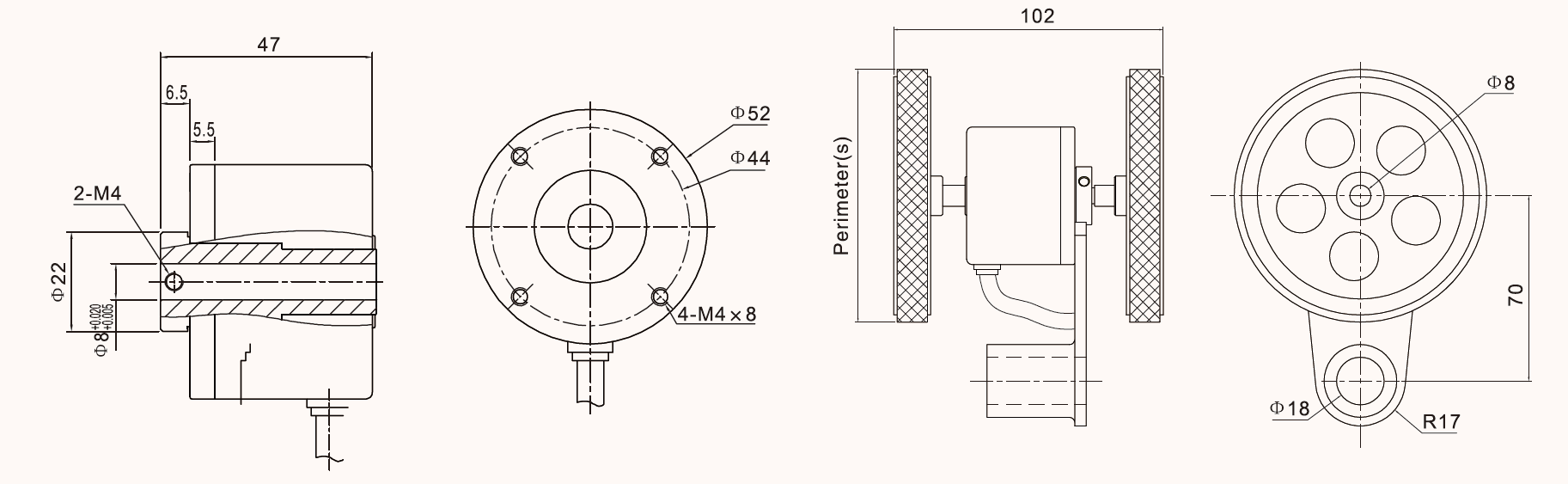

Dimensions(mm)

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
