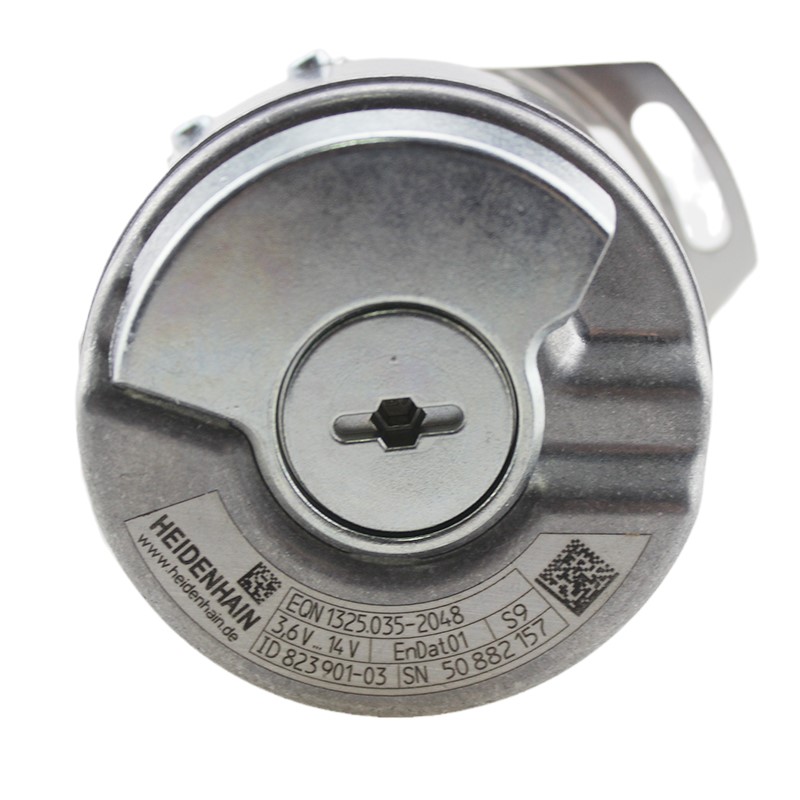

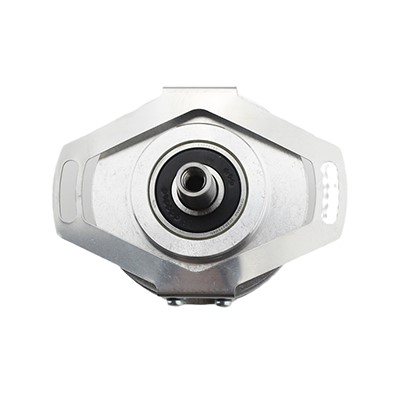

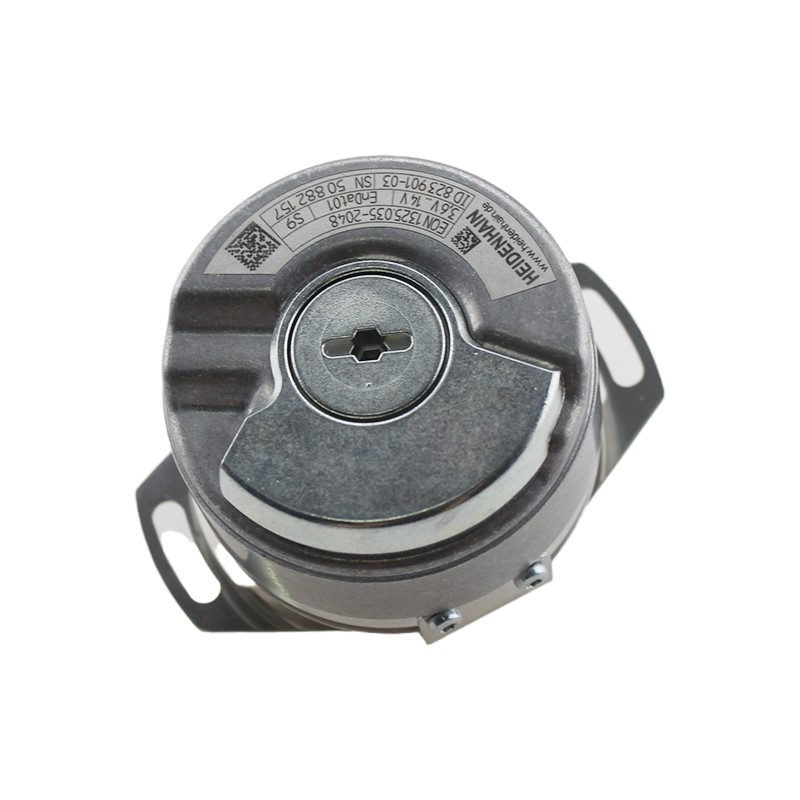

The HEIDENHAIN EQN 1325 absolute encoder offers the following features…
-
13 bit (8192, 4096ppr)
-
512 and 2048 line count options
-
EnDat01 interface
-
1Vpp incremental signals
-

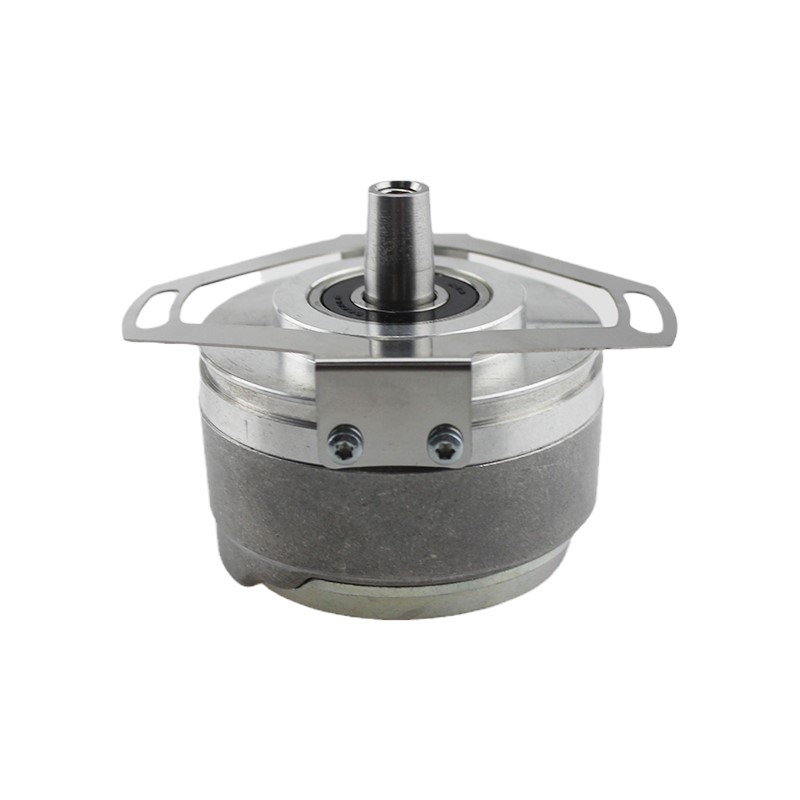

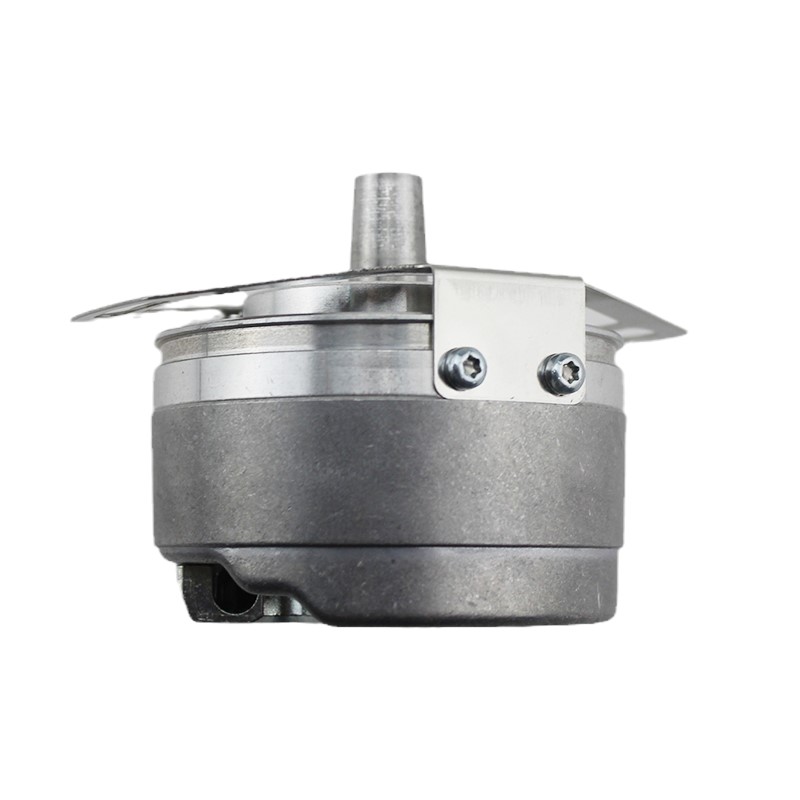

Taped 1:10 shaft, 9.25mm length (blind hollow shaft version available)
-
Mounted stator coupling
-
Max. operating temperature up to 115 °C
-
Max. shaft speed: 12000 rpm
-
Voltage supply is DC 3.6V to 14V
-
Housing diameter ≈ 64.8 mm
-
12 pin PCB connector
-
IP40 rating
Product Description
|
Code
|
EQN 1325
|
|
Position values/revolution
|
8192 (13 bits)
|
|
Elec. permissible speed/ Deviations1)
|
512 lines: 5000 rpm/±1 LSB 12 000 rpm/±100 LSB 2048 lines: 1500 rpm/±1 LSB 12 000 rpm/±50 LSB
|
|
Calculation time
Clock frequency
|
≤9 µs
≤2MHz MHz
|
|
Incremental signals
|
~1Vpp
|
|
Line count
|
512 2048
|
|
System accuracy
|
512 lines: ±60“; 2048 lines: ±20“
|
|
Cutoff frequencu -3dB
|
2048 lines: ≥ 400 kHz 512 lines: ≥ 130 kHz
|
|
Electrical connection
Via PCB connector
|
12-pin
|
|
Voltage supply
|
DC 3.6V to 14V
|
|
Power consumption (maximum)
|
3.6 V:≤0.7W
14 V:≤0.8W
|
|
Current consumption
|
5 V: 85 mA (without load)
|
|
Stator torque
|
≤0.01Nm(at 20℃)
|
|
Shaft
|
Taper shaft φ9.25mm;taper 1:10
|
|
Mech. permiss. speed n
|
≤12000 rpm
|
|
Moment of inertia of rotor
|
2.6·10–6 kgm^2
|
|
Permissible axial motion of measured shaft
|
±0.5 mm
|
|
Vibration 55 Hz to 2000 Hz
Shock 6 ms
|
≤300 m/s^2 (EN 60 068-2-6)
≤2000 m/s^2 (EN 60 068-2-27)
|
|
Max. operating temperature
|
100℃
|
|
Min. operating remperature
|
Fixed cable: -40℃
Moving cable: -10℃
|
|
Protection EN 60529
|
IP64 when mounted
|
|
Mass
|
≈0.25kg
|
