In the precision CNC machining industry, tiny dimensional errors may lead to workpiece scrapping. The control accuracy during manual fine adjustment directly affects the finished product qualification rate. As a core control component for manual feed of CNC machine tools, YUMO ISM8060-002-100B-24F embedded electronic handwheel has become a preferred matching part for machining centers, engraving and milling machines, lathes, grinders and woodworking CNC equipment, thanks to industrial-grade materials and stable pulse output performance.

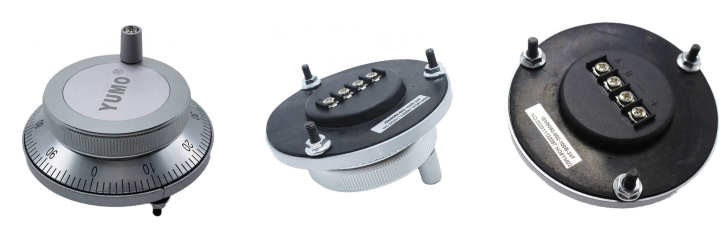

The handwheel housing is integrally die-cast with high-strength aluminum alloy with fine sandblasting finish. The anti-slip knurling on the side avoids slipping during rotation. The dial features clear and evenly divided scales, and the rotating shaft is well-damped for smooth and tight operation without clearance or jamming, effectively reducing operator fatigue during long-time frequent adjustment. This model outputs 100 pulses per revolution with standard 24VDC power supply. The built-in circuit board adopts multi-level anti-interference design to resist electromagnetic radiation from inverters, servo motors and high-power workshop devices. It ensures zero lost steps and signal jumps during transmission, enabling real-time synchronous response of the CNC system and precise axis movement.
In terms of compatibility, this manual pulse generator works with most mainstream domestic and imported CNC systems with universal wiring definition. It supports both embedded installation on machine operation panels and external bracket mounting for flexible layout. It is widely used in tool setting correction, coordinate micro-offset adjustment, low-speed trial feed of machining paths, origin reset and precise trimming of molds. Certified by CE and RoHS, it adopts long-life encoder components with ultra-low failure rate. It is a cost-effective solution for original equipment assembly and replacement of broken old handwheels, providing reliable operation for high-precision mechanical processing and guaranteeing accurate manual feed control.
